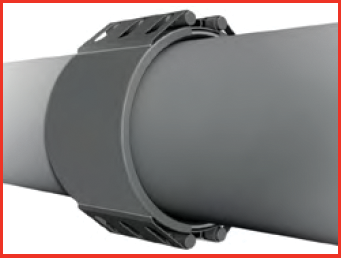

Assembling aeration and scour air service piping can be a challenge. Long runs and big temperature changes require a flexible coupling solution.
From 8" – 84", STRAUB-AIRFLEX is the easiest and most cost effective way to solve the problem.
Features:
• Lightweight & No special tools required for assembly
• Angular Flexibility; Axially flexible (up to 1")
• Two-piece model allows gasket replacement without pipe removal
STRAUB AIR-Flex: How it Works

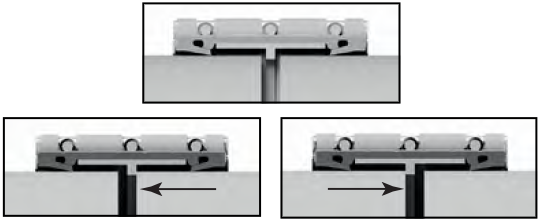

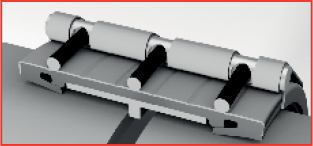

STRAUB AIR-FLEX is a connector and compensator in one. The integrated T-profile prevents the pipe coupling from moving away from the pipe gap.
The pipe ends push either on the right or left side against the T-profile,
holding the pipe coupling into the right position to cover the pipe gap
